射頻測試方案

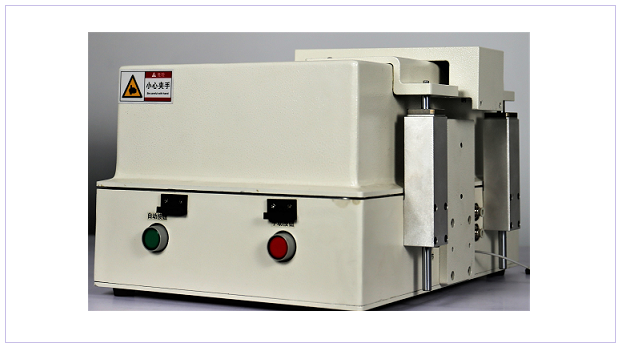

自動屏蔽箱
-
1. Pneumatic pressure - down shielding box;
2. Working frequency: 100MHz ~ 2GHz;
3. Shielding effect: 70dB;
4. External dimension : W293mm x L453mm x H300mm;
5. Working size: W210mm x L400mm x H140mm;
6. Materials: cast aluminium alloy;
7. Color: Ashen
8. Weight: 22Kg;
9. Filtering interface: SMA*15, USB*2, DB9*2, DB25*1, customized interface
